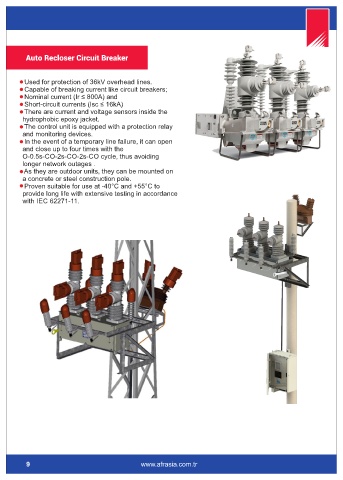

Used for protect on of 36kV overhead l nes.
Capable of break ng current l ke c rcu t breakers;
Nom nal current (Ir ≤ 800A) and
Short-c rcu t currents (Isc ≤ 16kA)
There are current and voltage sensors ns de the
hydrophob c epoxy jacket.
The control un t s equ pped w th a protect on relay
and mon tor ng dev ces.
In the event of a temporary l ne fa lure, t can open
and close up to four t mes w th the
O-0.5s-CO-2s-CO-2s-CO cycle, thus avo d ng
longer network outages .
As they are outdoor un ts, they can be mounted on
a concrete or steel construct on pole.
Proven su table for use at -40°C and +55°C to
prov de long l fe w th extens ve test ng n accordance
w th IEC 62271-11.
